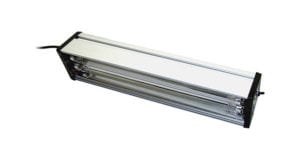

X-Series lamps are ideally suited for applications where high-intensity, wide-area UV coverage is required. Constructed of rugged metal with sturdy mounting brackets, these units are available in various combinations of long, medium and/or short wave UV. The complete line also offers lamps in a wide choice of various intensities, sizes and-wattage, including single or double UV tubes. A corrosion-resistant aluminum reflector optimizes UV irradiance while all short and medium wave models feature our unique LONGLIFE™ filter glass to ensure high initial UV intensity. These versatile lamps are also a key component of our CL-151 UV fluorescence analysis work station. They offer easy wavelength interchangeability making this system ideal for numerous applications requiring a darkened environment.
- Choice of 15-watt, 30-watt and 40-watt models
- Available in all UV wavelengths (long-wave, medium-wave, short-wave) as well as germicidal lamps
- Single- and double-tube combinations
- Filtered UV-A and unfiltered UV tubes
- Offered with or without filter assemblies
- 15-watt models with anodized aluminum housing
- 30- and 40-watt models with enameled sheet metal housing
- Outfitted with sturdy metal brackets for easy overhead mounting
Single Wavelength, X–Series

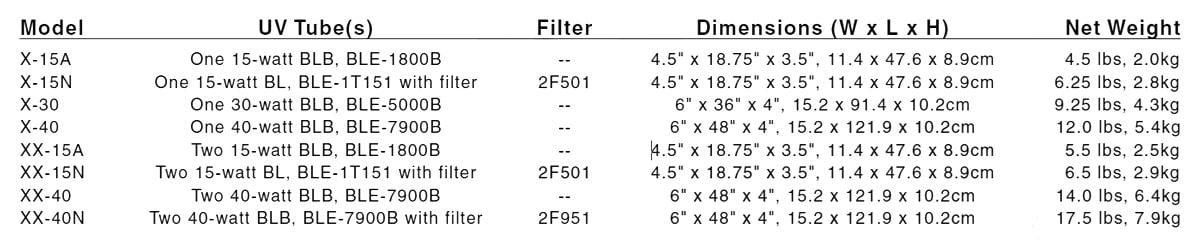

Long wave, LW (UV-A, 365nm)
- Integrally filtered tube (BLB) or unfiltered tube (BL)
- With or without filter

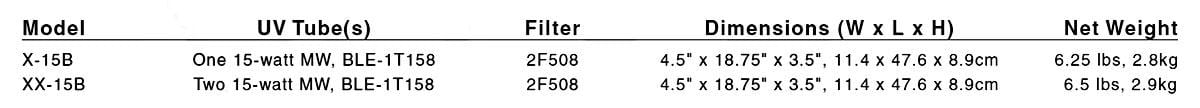

Medium wave, MW (UV-B, 312nm)
- Unfiltered tube
- With LONGLIFE filter

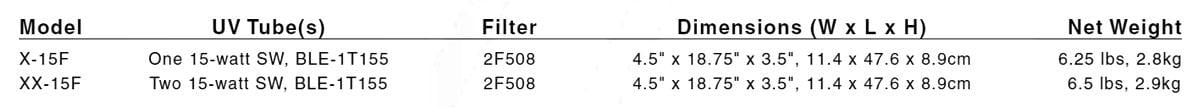

Short wave, SW (UV-C, 254nm)
-
Unfiltered tube
-
With LONGLIFE filter

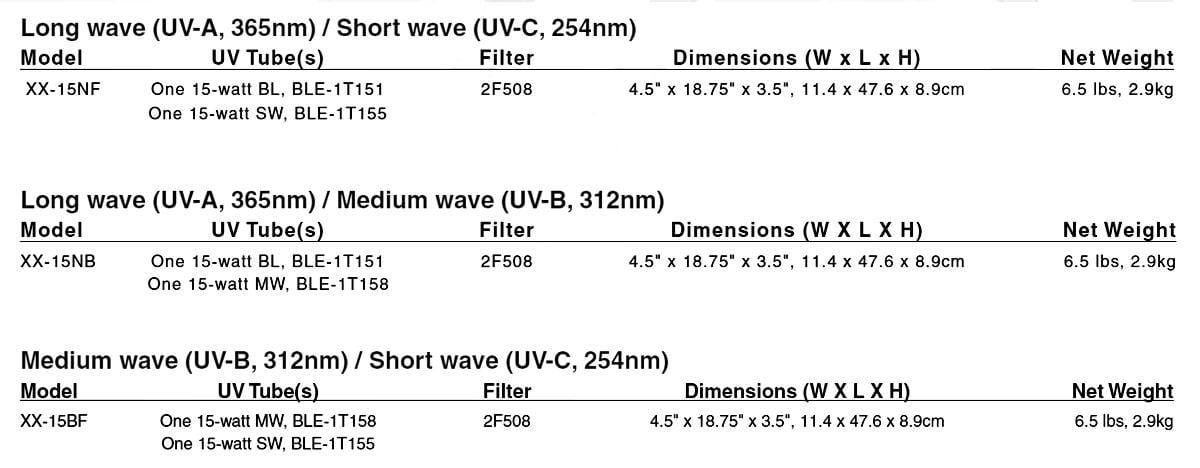

Multi Wavelength, X–Series
- Unfiltered long, medium and short wave tubes
- With LONGLIFE filter

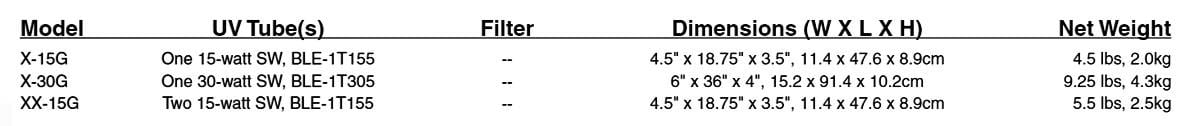

Germicidal, X–Series
- Unfiltered short wave (UV-C) tubes without filter
