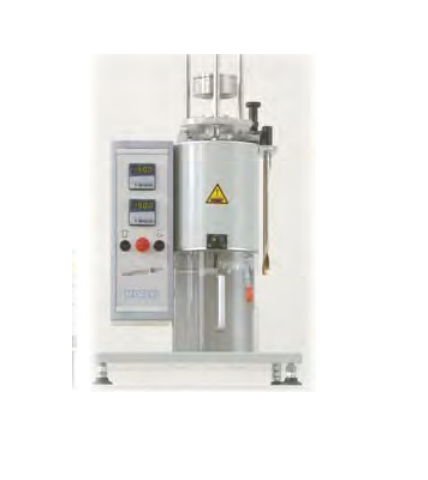

MeltFlow @on

The Melt index Tester series MeltFlow @on are highly precise melt index testing instruments for the measurement of the MFR (melt flow rate) in g/10 min.  and MVR (melt valume rate) in ccm/10 min. according to EN ISO 1133 method A/B, ASTM D 1238 method A/B and similar standards, used for quality control and research applications.

Categories: , SKU: 3200.000



  • Real modular melt index tester
  • Up-to-date, modern and ergonomic design
  • High Precision and longtime constant temperature control
  • Liner, high Precision piston travel transducer
  • User friendly and "all-included" Windows Software k-BASE, used for the instrument control and test evaluation, reference, statistic and filterning functions
  • Automatic cutting device and motorized lifting device optional available


Technical data:

Dimensions meltFlow @on
width (mm) 400
height (mm) 470
depth (mm) 450
weight (kg), approx. 31
temperature range (C) 400
resolution (K) 0, 1
Electrical data
nominal voltage (+/- 10% ) 50 Hz (V) 230
nominal power (W), approx.  1600
