How it works
MINI 96 transfers 96 samples in a single step, making filling these plates much faster and more reproducible. In addition, individual columns of a plate can be filled as well (8 samples, 16 samples, 24 samples…), replacing the need to use 8 channel pipettes entirely. Up to two positions for labware can be used at one time (eg. Reservoir and 96 well plate).

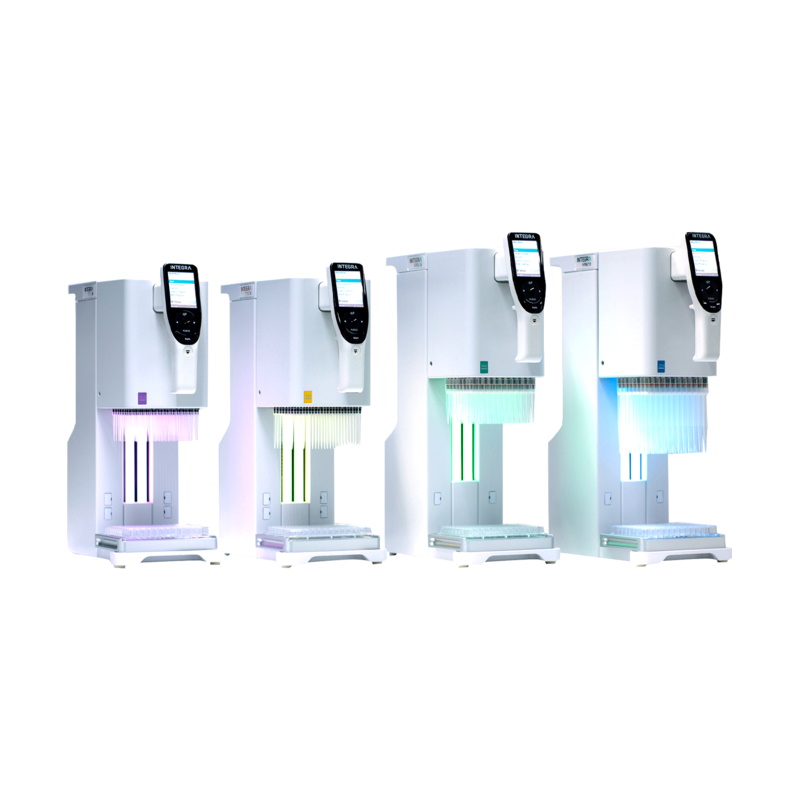

Simple handheld operation
MINI 96 is a handheld 96 channel electronic pipette, made to increase the productivity and reproducibility of every lab filing 96 or 384 well plates. It is as simple to use as a single channel electronic pipette. A servo motor assists all movements, resulting in effortless pipetting – just sit and start pipetting. Manual indexing from 96 to 384 format is a breeze with the flippable Base Stage.
Portable, tiny footprint
With a footprint about the size of a 96 well plate, the MINI 96 fits on any bench space in any lab. It’s extremely light weight and small, allowing everyone to grab and move it to exactly where it’s needed. In addition, its tiny size and portability make it the ideal instrument to use and move into and out of a Laminar Flow Cabinet.

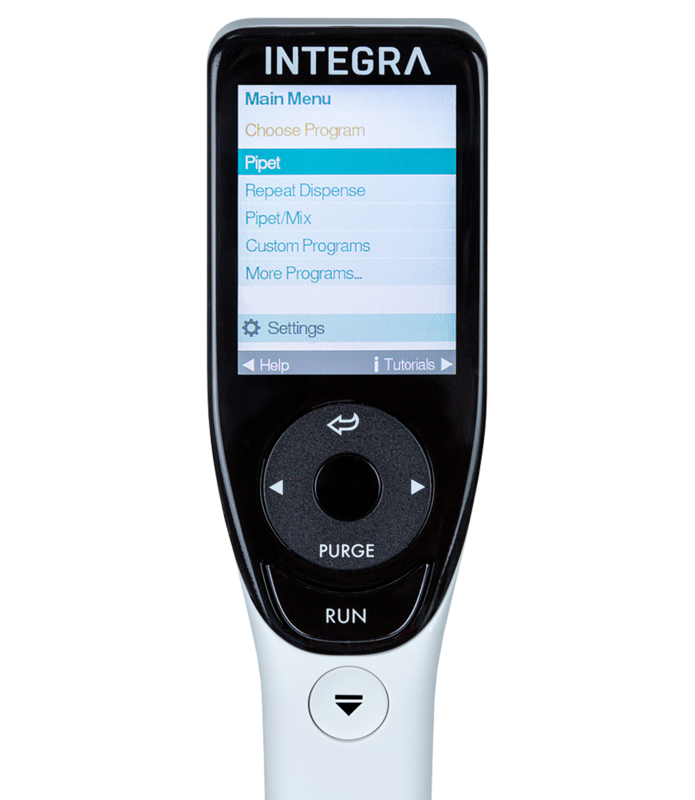

Easy to understand menu
No formal training required – simply turn on and start pipetting, guided by the logical menu navigation. There are even tutorials to help answer any questions a new user might have.

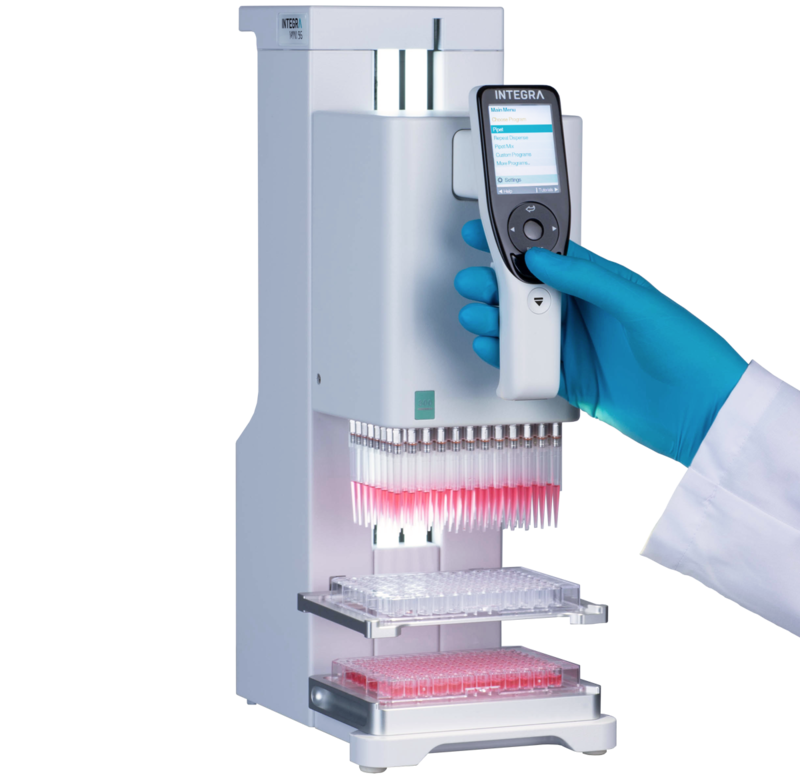

Removable second labware position
A removable Second Stage comes standard with each MINI 96 to reduce labware handling. The source plate or reservoir can be placed on the base stage, then target plates can be loaded onto the Second Stage for filling.
Optionally fill partial plates or single columns
Filling partial plates, for example, half plates or a few columns, or performing serial dilutions is easily achieved using the optional Two Position Stage. This avoids excessive plate handling, streamlining protocols and giving you the flexibility to find the optimal set-up for you. Of course, it can also be used to load all 96 tips as well!
GripTip Pipette Tips which never leak or fall off
Losing a tip during an assay preparation can ruin hours of work. Also a reliable sealing between tip and fitting to avoid dripping tips is of key importance for accurate pipetting.
INTEGRA has redesigned the connection between pipette tip and tip fitting to eliminate these issues. The unique GRIPTIP PIPETTE TIPS are comfortably loaded and ejected without any physical effort due to a power assisted mechanism activated by a push button. The loading procedure also guarantees that GripTips are not touched by the user and remain sterile.
Tech info
Find here a quick overview of the product specifications. More detailed information can be found in the download-section below.
- Dimensions 12.5 µl, 125 µl (W x D x H): 16 cm x 26 cm x 40 cm (6.3" x 10.2" x 15.8")
- Dimensions 300 µl, 1250 µl (W x D x H): 16 cm x 26 cm x 44 cm (6.3" x 10.2" x 17.3")
- Weight 12.5 µl, 125 µl: 8.8 kg
- Weight 300 µl, 1250 µl: 9.4 kg
- Power Requirements: 100-240 VAC, 50/60 Hz
- Pipetting channels: 96
- Compatible formats: 96-, and 384-well microplates, shallow and deep well
- Labware positions: Up to 2
