APPLICATION

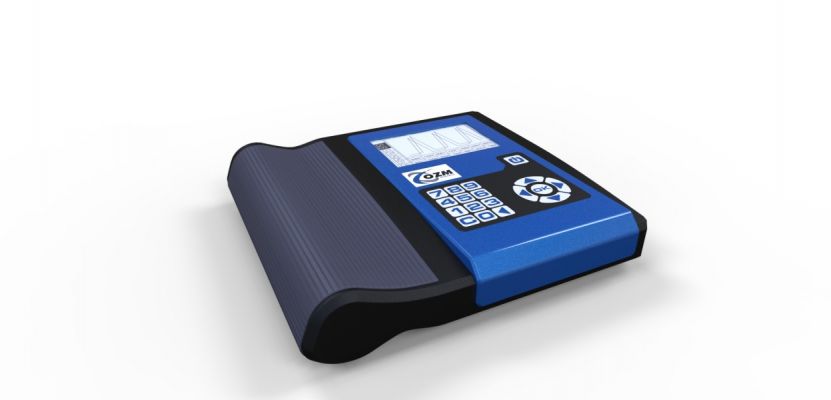

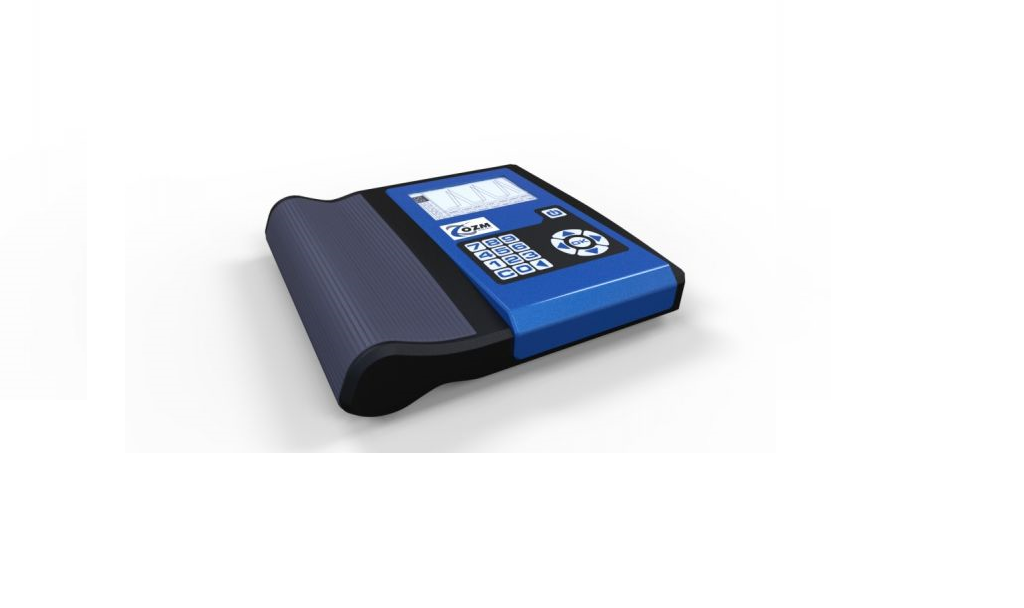

OPTIMEX 8 is primarily designed for measurements of detonation velocity of energetic materials in industrial, educational or engineering applications. OPTIMEX 8 records full light intensity-time profiles at specific places within an explosive charge. Analysis of light emission profiles makes evaluation of such signals robust and reliable for all existing samples including non-ideal explosives. Explosive’s translucency, low light emissivity and afterburning will no longer spoil the measurement results. The OPTIMEX 8 can also be used to measure detonation wave curvature and non-reactive shock velocity.
ADVANTAGES & FEATURES
- 8 optical probes selected according to customer’s application (plastic or glass fibers)
- Full light intensity-time profiles available
- Automatic data evaluation with limited manual corrections
- Battery charged instrument equipped with internal memory
- LCD touch screen display • Optional wireless control
COMPLIANCE
- EN 13631-14 Explosives for Civil Uses – High explosives, Part 14: Determination of Velocity of Detonation
