Designed to monitor UV radiation and self-adjust to variations in UV intensity, all Spectroline UV crosslinkers feature a “smart” microprocessor controller and unique true UV monitoring circuitry to enable users to get errorfree results with speed, accuracy and safety.
The Spectrolinker™ series was developed to be one of the most advanced, versatile and accurate UV crosslinkers and is a now worldwide best-seller.
- Covalently binds nucleic acid sequences and hybridization membranes in 30 seconds or less
- Safeguards your valuable test results from washouts
- Ensures optimum nucleic acid membrane binding, even when UV output varies
- Provides ultimate ease of use and accuracy with “Smart” microprocessor controller
- Protects users from UV exposure with fully enclosed chamber

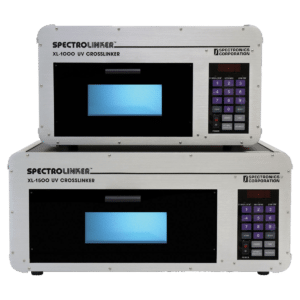

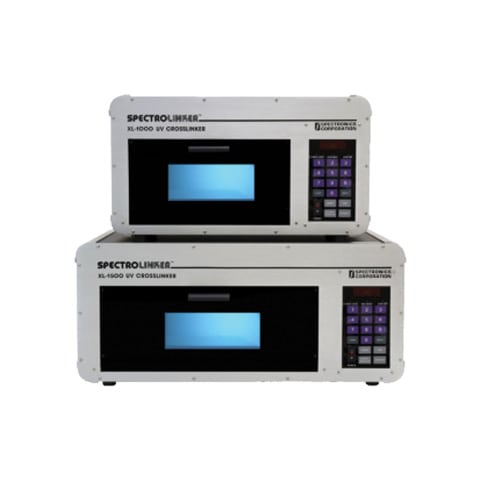

Spectrolinker™ Series
-
Rugged, anodized aluminum housing
- Long lasting anodized aluminum chamber prevents rusting
- Available in SW, MW and LW wavelengths
- Available in Two Sizes: Standard XL-1000 Series, and Large XL-1500 Series
The 254nm versions of the Spectrolinker™ UV crosslinkers provide super-fast DNA and RNA crosslinking to membranes for improved hybridization-signal sensitivity. At peak, these units can process samples in under 30 seconds — that’s 240 times faster than vacuum-oven baking! Our exclusive, wavelength-specific, multi-stack UV photo sensor, which is factory-calibrated to NIST standards, provides precise UV-only dosage measurements. Full range display resolution is accurate to 5μW/cm2 EMI/RFI protection. All models from both series offer exceptional accuracy and precision irradiation, even compensating for aging UV tubes when output diminishes over time.
Programmable “Smart” Microprocessor Controller
-
LED-function indicators and color-coded keypad
- Built-in “help” messages
- Four operation modes
- Auto Repeat function remembers last operation without reprogramming
Four operation modes
- Optimal Crosslink mode automatically provides a preset UV energy dosage of 120 mJ/cm2
- Energy-set mode (0-999,990 μJ/cm2) allows for variable amounts of UV energy to be programmed
- Time mode (0-9,900 seconds), allows for variable time settings to be established
- Intensity mode shows steady-state UV intensity output
Note: All units have an irradiance display resolution of ±5μW/cm2 over the entire range.
Built-in “help” messages —
- Bulb: When the UV tubes need to be replaced
- Door open: the unit also protects users from accidental UV radiation when the door is opened during a run
- End: End of cycle confirmed by display and audible beep
- Remaining Time/Energy provides operation status report
- When the operation has been interrupted. The RESET button cancels the latest settings and START button automatically resumes the current operation.
Standard Size Product Details
Spectrolinker™ XL-1000 Series
- Overall housing dimensions (W x H x D): 19.5″ x 10.5″ x 9″, 49.5 x 26.7 x 22.9cm
- Effective inner chamber dimensions (W x H x D): 13.5″ x 7.0″ x 7.5″, 34.3 x 17.8 x 19.1cm
- Door dimensions (W x H): 12.0″ x 6.25″, 30.5 x 15.9cm
- Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm for XL-series, 6.0″ x 3.0″, 15.2 x 7.6cm for XLE-series
- Net weight: 17.5 lb, 7.9kg
- Power: 120V-60Hz-2A, 230V-50Hz-2A, 100V-50/60Hz-2A
Large Size
Spectrolinker™ XL-1500 Series only
- Overall housing dimensions (W x H x D): 24.0″ x 10.5″ x 14″, 61.0 x 26.7 x 35.6cm
- Effective inner chamber dimensions (W x H x D): 18.25″ x 6.25″ x 12.5″, 46.4 x 15.9 x 31.8cm
- Door dimensions (W x H): 16.0″ x 6.25″, 40.6 x 15.9cm
- Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm
- Net weight: 26 lb, 11.8kg
- Power: 120V-60Hz-3A, 230V-50Hz-3A, 100V-50/60Hz-3A
