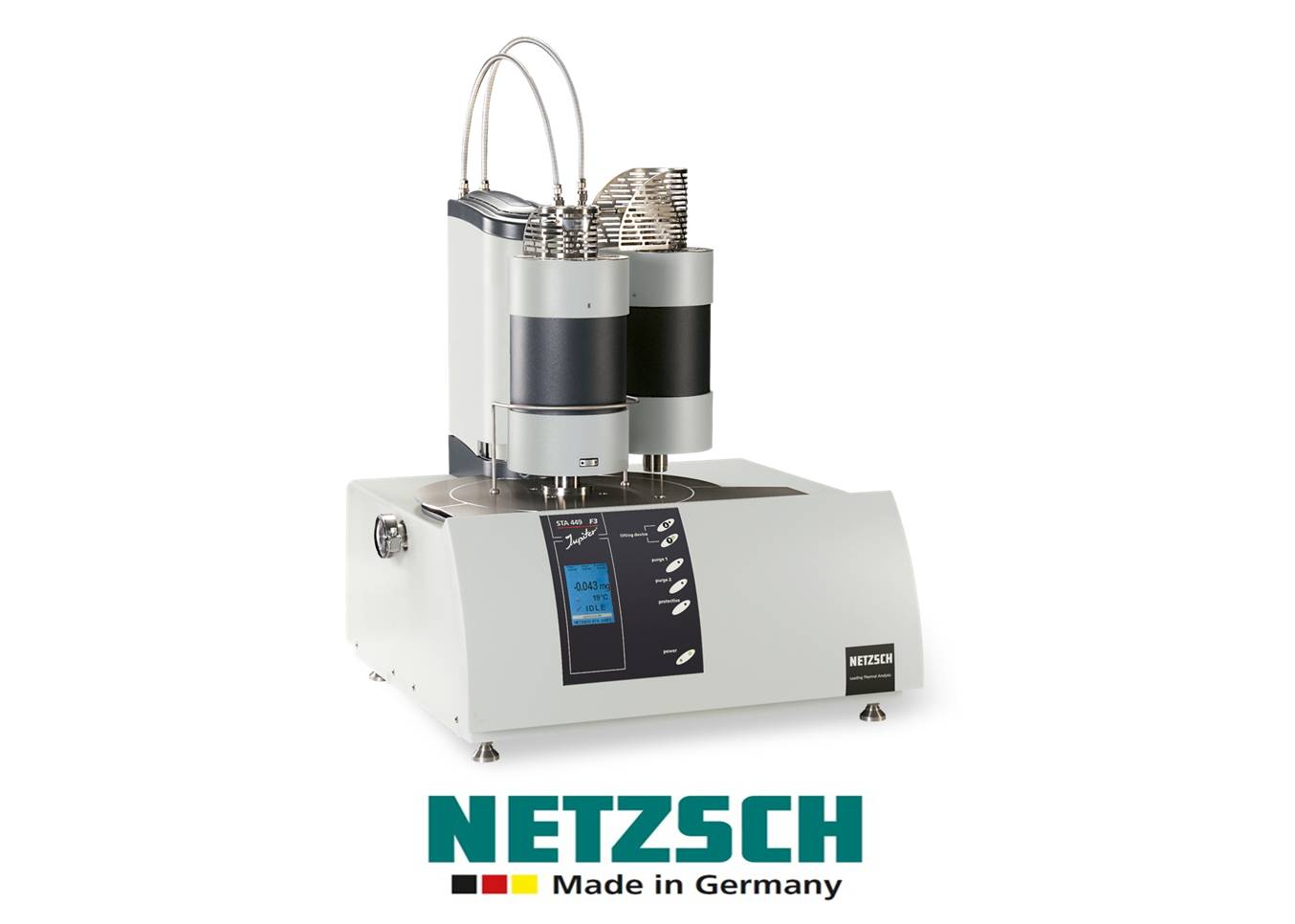

The simultaneous thermal analyzer NETZSCH STA 449 F3Jupiter® allows the measurement of mass changes and thermal effects between -150°C and 2400°C.
The high flexibility caused by the various sensors, the great variety of sample crucibles and the wide TGA-measuring range make the system applicable for analysis of all kinds of materials including also inhomogenous substances.
Easily interchangeable sample holders allow the optimal system adaption to the diverse application areas (TGA, TGA-DTA and TGA-DSC measurements).
Various furnaces, easy interchangeable by the user, cover the complete temperature range (please see accessories).
Through to the vacuum tight design measurements at defined atmospheres (e.g. inert) are possible. The system is controlled by a newly developed integrated digital electronic device.
The analysis of measuring data runs under a standard PC and the well-proven Windows® software.
-
Temperature range:
-150°C to 2400°C
-
Tungsten furnace
(RT to 2400°C)
High-speed furnace
(RT to 1250°C)
-
Heating and cooling rates:
0.001 K/min to 50 K/min
(dependent on furnace)
-
Weighing range:
35000 mg
-
TG resolution:
0,1 µg (over entire weighing range)
-
DSC resolution:
< 1 µW (dependent on sensor)
-
Atmospheres:
inert, oxidizing, reducing, static, dynamic
- Switch valve for 2 purge gases and 1 protective gas
-
Vacuum-tight assembly
up to 10-4 mbar
| Type | Temperature range | Cooling system |
|---|---|---|
| Silver furnace | -120°C to 675°C | liquid nitrogen |
| Copper furnace | -150°C to 500°C | liquid nitrogen |
| Steel furnace | -150°C to 1000°C | liquid nitrogen |
| Platinum furnace | RT to 1500°C | forced air |
| Silicon carbide furnace | RT to 1600°C | forced air |
| Rhodium furnace | RT to 1650°C | forced air |
| Graphite furnace | RT to 2000°C | tap or chilled water |
| Water vapor furnace | RT to 1250°C | forced air |
| High-speed furnace | RT to 1250°C | forced air |
| Tungsten furnace | RT to 2400°C | tap or chilled water |
