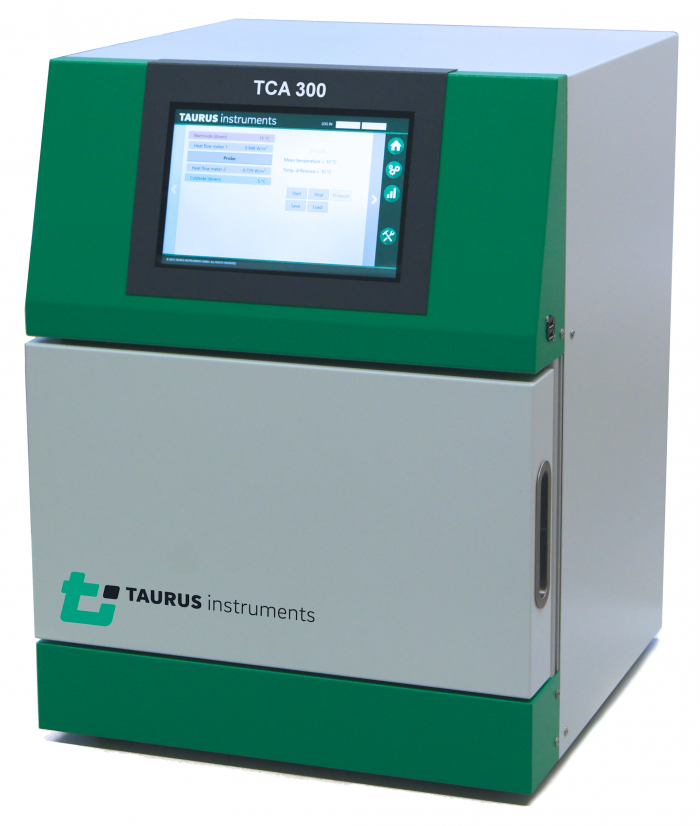

Measuring devices of the TCA 300 series are compact, robust desktop devices equipped with an integrated Single Board Computer (SBC) with Windows 10 operating system, the software Lambda 2016 and a high resolution color touch display that can be operated in standalone mode.
Numerous interfaces such as RS232, USB and Gigabit Ethernet enable the connectivity to peripheral devices and the fast and convenient transfer of all relevant data. The direct connection to a printer allows for printing test reports without using an additional PC.
Features:
- Fully insulated test chamber to avoid external influences
- 2 symmetrically arranged precision heat flow meters
- External cooling with tap water or recirculation cooler for three different temperature ranges
- Electrically operated plate lifting mechanism
- Digital measurement of pressure and sample thickness
- SBC with 32 GB SSD, Windows 10 and software Lambda 2016
- 10.1“ color touch-screen
- Interfaces: 1x RS232, 5x USB, 1x Gigabit Ethernet
Technical data:
| TCA 300 basic | TCA 300 extended*** coming soon *** | TCA 300 high temperature*** coming soon *** | |
| Measuring range* | 0.002 – 1.0 W/m·K | 0.002 – 1.0 W/m·K | 0.002 – 1.0 W/m·K |
| Sample size (LxW) | 100 x 100 – 300 x 300 mm |
100 x 100 – 300 x 300 mm |
100 x 100 – 300 x 300 mm |
| Sample thickness (H) | 5 – 100 mm | 5 – 100 mm | 5 – 100 mm |
| Temperature range Cooling plate Heating plate |
(min./max.) -20 / +60 °C -10 / +70 °C |
(min./max.) -20 / +110 °C -10 / +120 °C |
(min./max.) 0 / +170 °C 10 / +180 °C |
| Dimensions (HxWxD) | 620 x 440 x 400 mm | 620 x 440 x 400 mm | 620 x 440 x 400 mm |
| Power supply | 110 – 230 V – 50 / 60 Hz | 110 – 230 V – 50 / 60 Hz | 110 – 230 V – 50 / 60 Hz |
| Weight | 41 kg | 41 kg | 41 kg |
Devices with heat flow meter are primarily used in the industry for quality and production control because they deliver reliable measuring results within a very short time. Adherence to the required calibration routine ensures that these devices achieve nearly the same accuracy as devices with guarded hot plate.
Schematic diagram of heat flow meter method
Heat flow meter devices use one or several heat flow measuring plates to determine the heat flow density q in (W/m²). Their possible layout is defined in the standard ISO 8301, section 2.2.1.2.
All TCA devices from TAURUS Instruments are designed according to the one-plate-principle with two symmetrically arranged heat flow measuriמכשיר למדידת מוליכות תרמית עם מד זרימת חום בהתאםng plates according to ISO 8301, section 2.2.1.2, figure 1b. This measuring method is an indirect method with the heat flow meters generating a voltage signal equivalent to the heat flow and therefore need to be calibrated.
