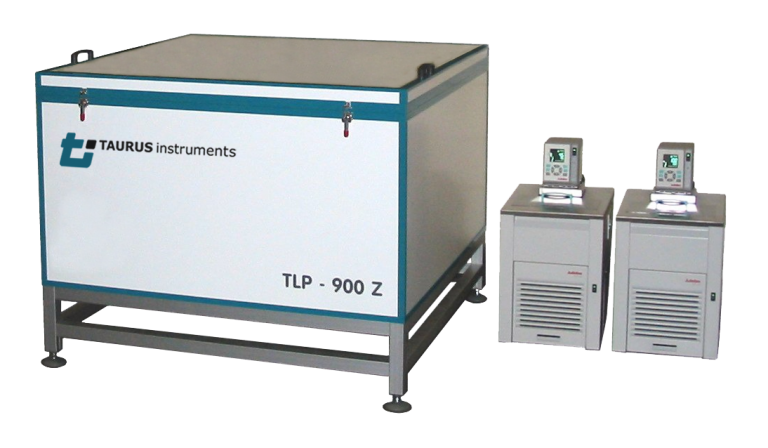

Measuring device of the TLP 800 / 900 series are suitable, for a wide range of applications, especially designed for thicker samples with a high gross density. Due to the design of the device, the samples are inserted into the test chamber from the top. This allows the insertion of heavy and complex samples without damaging the measuring plates. The data logging and control of the device is done via the external desktop device Lambda Control and a PC with Windows 10 operating system and software Lambda 2016.
Features:
- Fully insulated (X) or temperature controlled (GX) test chamber to avoid external influences
- Cooling with external recirculation cooler for extended temperature and measuring range
- External measuring and control unit Lambda Control
Technical data:
| TLP 800-1 (2) | TLP 800 G1 (2) | TLP 900-1 (2) | TLP 900 G1 (2) | |
| Measuring range* | 0.005 – 2.0 W/m·K | 0.005 – 2.0 W/m·K | 0.005 – 2.0 W/m·K | 0.005 – 2.0 W/m·K |
| Sample size (LxW) | 500 x 500 – 800 x 800 mm |
500 x 500 – 800 x 800 mm |
500 x 500 – 900 x 900 mm |
500 x 500 – 900 x 900 mm |
| Sample thickness (H) | 10 – 180 mm (2x 10 – 100 mm) |
10 – 240 mm (2x 10 – 120 mm) |
10 – 220 mm (2x 10 – 110 mm) |
10 – 280 mm (2x 10 – 140 mm) |
| Temperature range Cooling plate Heating plate |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
| Dimensions (HxWxD) (cover open) |
210 x 105 x 110 cm | 210 x 105 x 110 cm | 210 x 105 x 110 cm | 210 x 105 x 110 cm |
| Power supply | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz |
| Weight | 228 kg | 236 kg | 238 kg | 246 kg |
* depending on sample thickness
