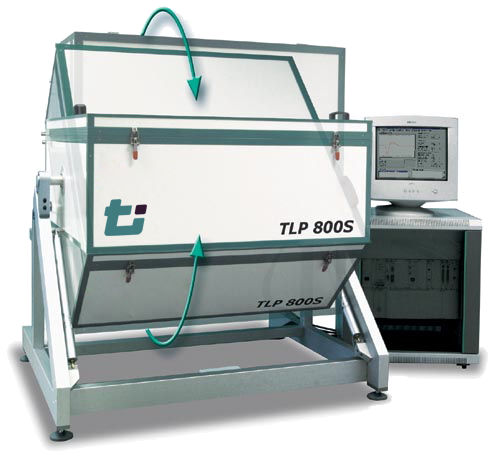

Measuring devices of the TLP 800S / 900S series are cabinet devices suitable for a wide range of applications with tiltable test chamber, especially suited for thicker samples and insulating glass. Due to the design of the device, the samples are inserted into the test chamber from the top. This allows the insertion of heavy and complex samples without damaging the measuring plates. The data logging and control of the device is done via the external desktop device Lambda Control and a PC with Windows 10 operating system and software Lambda 2016.
Features:
- Fully insulated (X) or temperature controlled (GX) test chamber to avoid external influences
- Cooling with external recirculation cooler for extended temperature and measuring range
- Electrically operated test chamber tilting mechanism
- Tilting angle indicator on LCD display
- External measuring and control unit Lambda Control
Technical data:
TLP 800 S1 (2) | TLP 800 GS1 (2) | TLP 900 S1 (2) | TLP 900 GS1 (2) | |
Measuring range* | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K |
Sample size (LxW) | 500 x 500 – 800 x 800 mm |
500 x 500 – 800 x 800 mm |
500 x 500 – 900 x 900 mm |
500 x 500 – 900 x 900 mm |
Sample thickness (H) | 10 – 180 mm (2x 10 – 100 mm) |
10 – 240 mm (2x 10 – 120 mm) |
10 – 220 mm (2x 10 – 110 mm) |
10 – 280 mm (2x 10 – 140 mm) |
Temperature range Cooling plate Heating plate |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
Dimensions (HxWxD) (cover open, horizontal position) |
235 x 130 x 120 cm | 235 x 130 x 120 cm | 235 x 130 x 120 cm | 235 x 130 x 120 cm |
Power supply | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz |
Weight | 250 kg | 258 kg | 257 kg | 265 kg |
* depending on sample thickness
