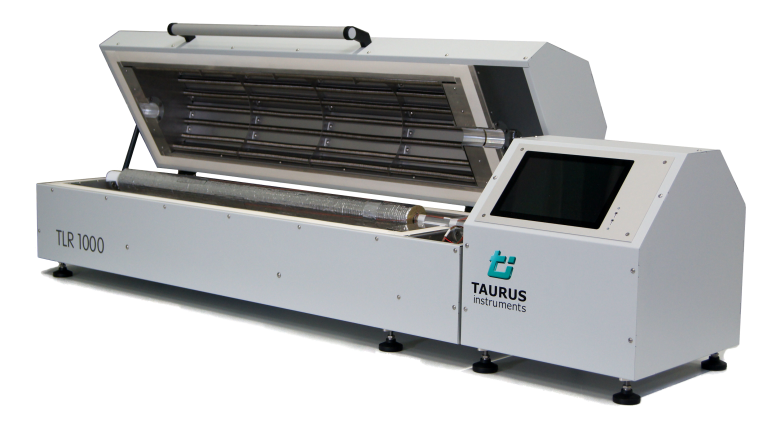

Measuring devices of the TLR 1000 GX series are compact, robust desktop devices equipped with an integrated Single Board Computer (SBC) with Windows 10 operating system, the software Lambda 2016 and a high resolution color touch display that can be operated in standalone mode.
Numerous interfaces such as RS232, USB and Gigabit Ethernet enable the connectivity to peripheral devices and the fast and convenient transfer of all relevant data. The direct connection to a printer allows for printing test reports without using an additional PC.
Features:
- Insulated and temperature controlled test chamber to avoid external influences
- Two device versions for different temperature ranges
- Temperature control of test chamber with external recirculation cooler for extended temperature and measuring range
- SBC with 32 GB SSD, Windows 8.1 and software Lambda 2016
- 10.1“ color touch screen
- Interfaces: 1x RS232, 2x USB, 1x Gigabit Ethernet
Technical data:
| TLR 1000 GX | TLR 1000 GHX | |
| Measuring range* | 0.01 – 0.25 W/m·K | 0.01 – 0.25 W/m·K |
| Sample dimensionsLength (L)
Internal diameter** øI External diameter øA |
1000 mm
(18) 22 – 89 mm 30 – 220 mm |
1000 mm
(18) 22 – 89 mm 30 – 220 mm |
| Temperature range Test chamber Heating pipe |
(min./max.) -20 / +40 °C +20 / +85 °C |
(min./max.) -15 / +140 °C +20 / +200 °C |
| Dimensions (HxWxD) | 450 x 1850 x 500 mm | 450 x 1850 x 500 mm |
| Power supply | 110 – 230 V – 50 / 60 Hz | 110 – 230 V – 50 / 60 Hz |
| Weight | 112 kg | 118 kg |
* depending on sample thickness
** heating pipe with diameter 22 mm included in delivery, additional pipes available as option
