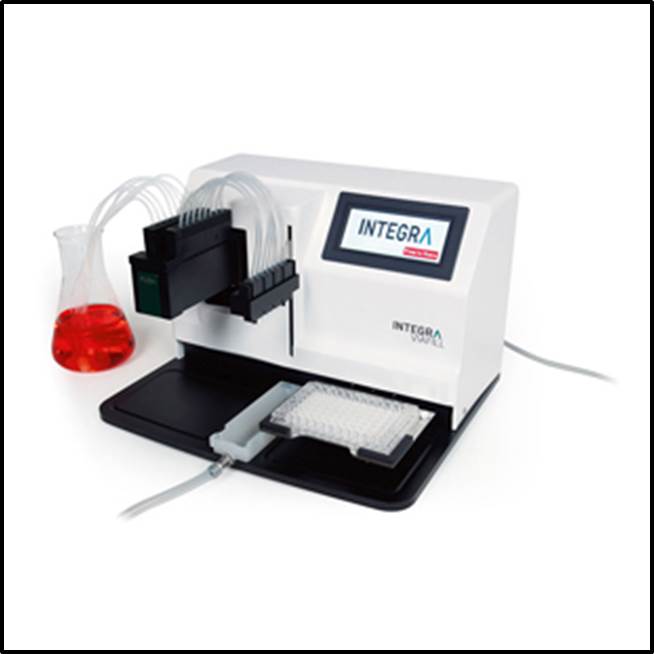

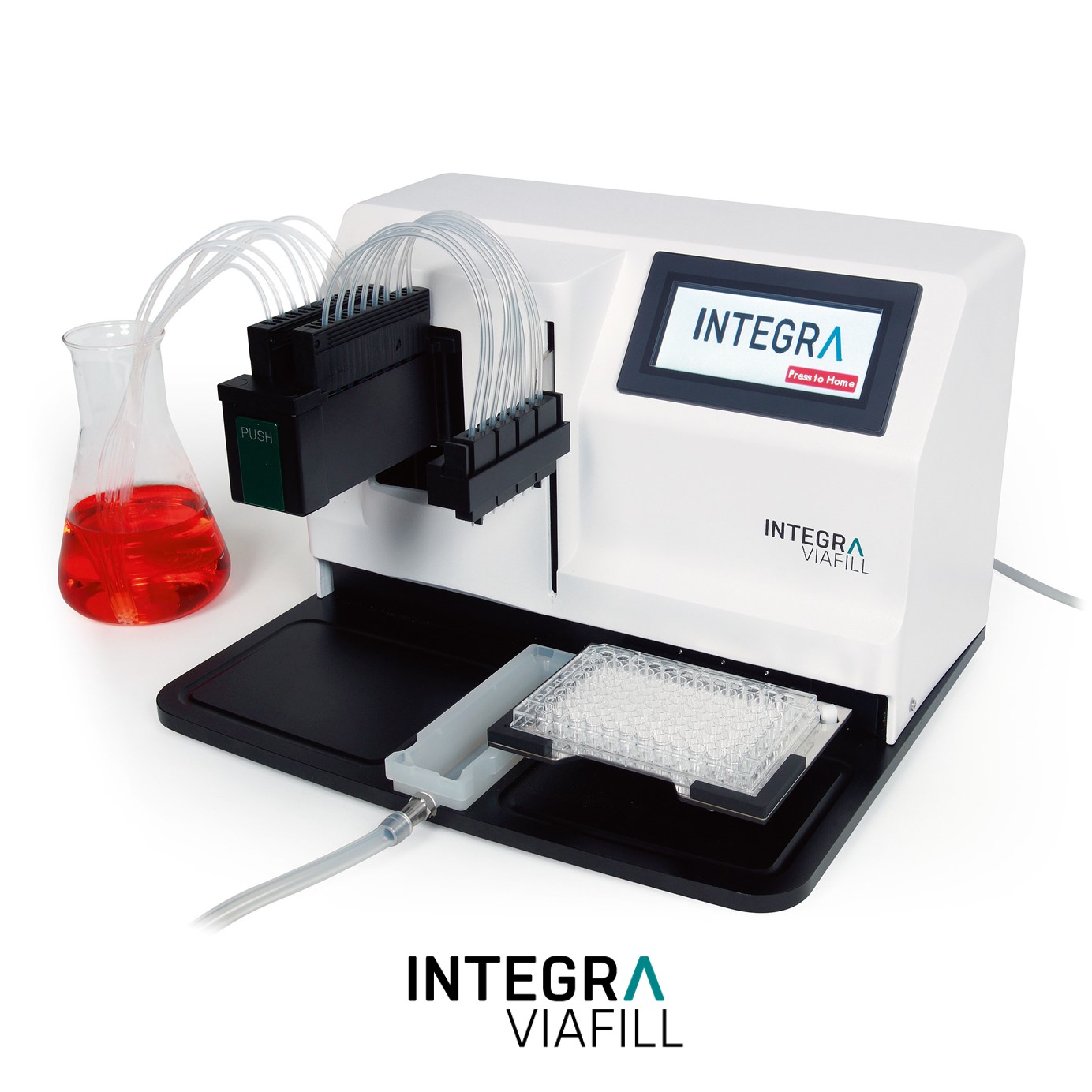

VIAFILL – Touch screen rapid reagent dispenser

VIAFILL – Touch screen rapid reagent dispenser

The VIAFILL reagent dispenser features a touch screen graphical user interface for simplistic programming of repeat dispenses, variable volume dispenses and custom programming.  Users can easily alternate between 8 and 16 channel dispensing cassettes for rapid filling of 6 to 1536 well plates. The addition of the stacker allows the utilization of 25 and 50 plate chimneys for filling bulk quantities of both non-lidded and lidded plates.

integra_viafill

מק"ט: VIAFILL. קטגוריה: . תגיות: , .

תיאור המכשיר

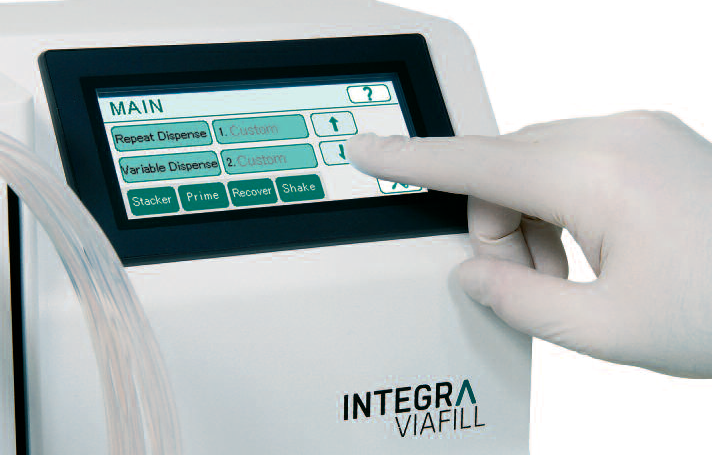

VIAFILL Upgrade

Rapid Reagent Dispensing

– Easy to use touch screen display

– Dispense between 0.5µL and 9,999µL

– 16 channel casette for rapid filling of 384 and 1536 well plates

– Dispense 100µL to a 96 well plate in under 10 seconds

– Autoclavable dispensing cassettes- Complete set of API commands available

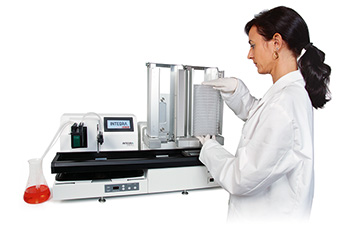

Plate Stacker

viafill_2_1

– Plate chimneys available for stacking either 25 and 50

plates

– Designed for standart or deep well plates of varying

heights

– Compatible with many lidded plates

– Walk away capability

VIAFILL Applications:

  • Screening Assays
  • Compound Storage/Addition
  • Cell Based Assays
  • ELISAs
  • Kinetic Assays
  • Genomic and Proteomic Studies






Device Specifications

Volume Range 0.5 µl to 9999 µl
Dispensing Speeds 18 seconds (100 µl to 96 well plate)
Compatible Formats 6, 12, 24, 48, 96, 384 and 1536 well plates (shallow and deep)
Power Voltage 100 – 240 VAC, 50/60 Hz
Dimensions (W x D x H) 37.5 cm x 30.5 cm x 24.0 cm (14.76″ x 12.00″ x 9.45″)
Operating Conditions 5° to ~35 °C, <80 % Humidity
Weight 10.66 kg (23.5 lbs)
User Interface Touch Screen
Sterilization Method Autoclavable Tubing Sets
Bore Size Of Plastic Tubing Sets Small: 0.3 mm (0.012″), Large: 0.5 mm (0.018″)
Amperage Rating 0.8 Amp Max
Voltage Tolerance ±10 %
Outlet Type VIAFILL must use grounded outlets only
Fuse Rating AC 250 V, T3.15AL

Accuracy and Precision

Dispensing Cassettes Volume Accuracy Precision (CV) Recommended Plates
8 Channel Small Bore 100 µl 100 µl ±1.5 % ≤1.0 % 1’000 Plates
2.0 µl ±3.0 % ≤4.0 %
8 Channel Standard Bore 200 µl ±1.5 % ≤1.0 % 2’000 Plates
5.0 µl ±2.0 % ≤3.0 %
16 Channel Small Bore 100 µl ±1.5 % ≤1.0 % 1’000 Plates
2.0 µl ±3.0 % ≤4.0 %

Dispensing Speeds

Dispensing Option Well Plate 1.0 µl 10 µl 50 µl 100 µl
8 Channel Small Bore Dispensing Cassette 96 well plate 5.6 sec. 7.6 sec 15.1 sec. 23.8 sec.
384 well plate 11.9 sec. 17.9 sec. 47.7 sec. 84.5 sec.
8 Channel Large Bore Dispensing Cassette 96 well plate NA 5.8 sec. 7.3 sec. 9.8 sec.
384 well plate NA 11.6 sec. 18.3 sec. 26.2 sec.
16 Channel Small Bore Dispensing Cassette 384 well plate 7.6 sec. 10.4 sec. 25.5 sec. 43.7 sec.
1536 well plate 17.6 sec. 30.5 sec. NA NA

Stacker Specifications

Dimensions Footprint (W x D) 78.9 cm x 32.1 cm (31.06″ x 12.64″)
Base Unit Weight 27 kg
Power Requirements 100 – 240 VAC, 50/60Hz
25 Plate Chimney Height 38.1 cm
50 Plate Chimney Height 70.5 cm
Interface Cable 5° to ~35 °C, <80 % Humidity
Weight 10.66 kg (23.5 lbs)
Detection Method Optical Sensor

Instrument

Part No.

VIAFILL

Base unit incl. 8 channel plastic dispensing cassette, sterile, 5 – 9999 µl

5600

8 channel, small bore Plastic dispensing cassette, sterile, 0.5 – 999 µl, 5 pack 5722
8 channel, standard bore Plastic dispensing cassette, sterile, 5 – 9999 µl, 5 pack 5724
16 channel, small bore Plastic dispensing cassette, sterile, 0.5 – 999 µL, 5 pack 5742
Part No.
Plate Stacker Base unit 5910
Plate Stacker Chimney 25 plate capacity (1 each) 5915
50 plate capacity (1 each) 5916
