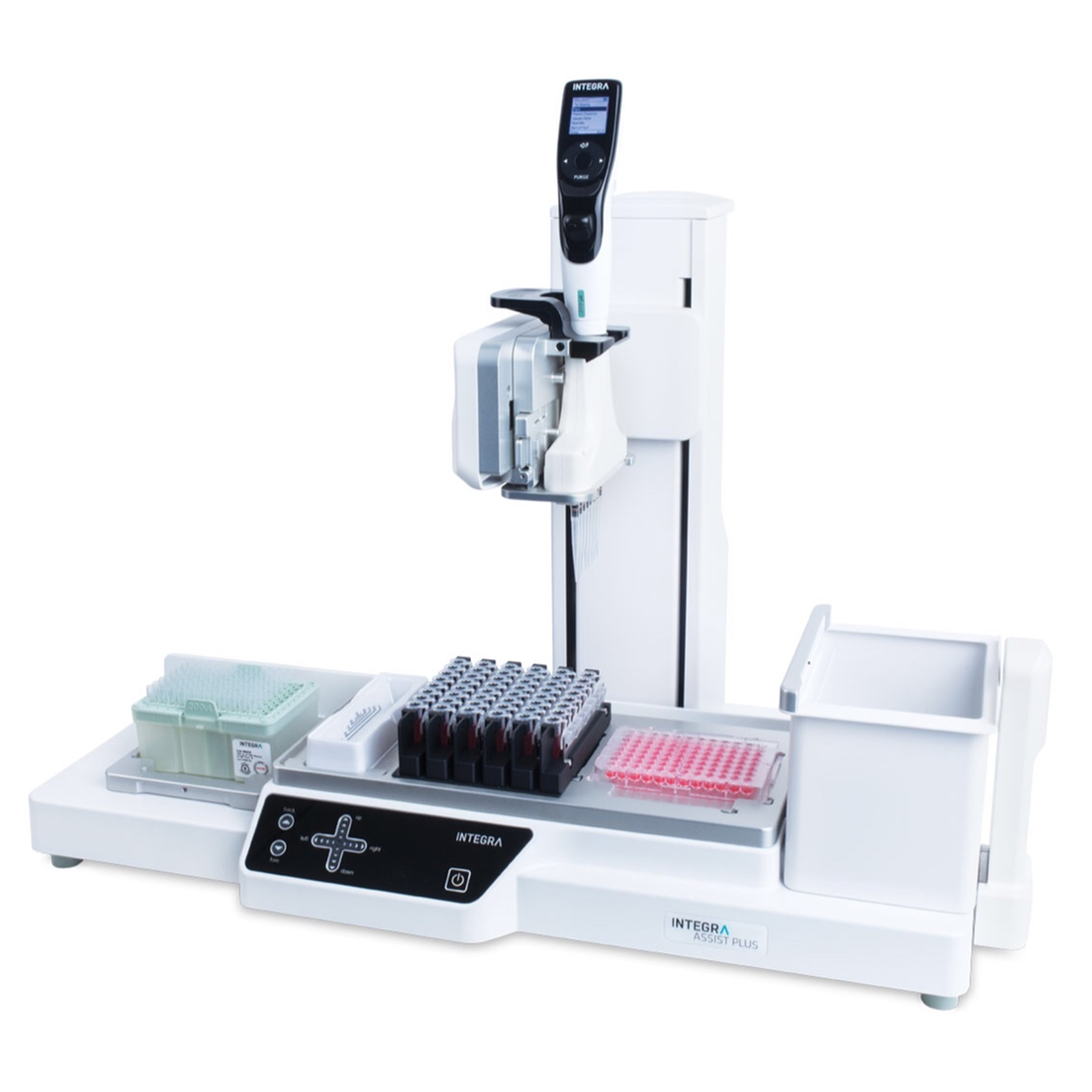

VIAFLO ASSIST PLUS – Your personal pipetting assistant

INTEGRA has developed the ASSIST PLUS pipetting robot to streamline routine pipetting tasks at an affordable price

Using INTEGRA electronic multichannel pipettes, the system automates pipetting tasks, eliminates physical strain and ensures superior reproducibility and error free pipetting

מק"ט: VIAFLO ASSIST PLUS 4505. קטגוריה: . תגיות: , .

תיאור המכשיר

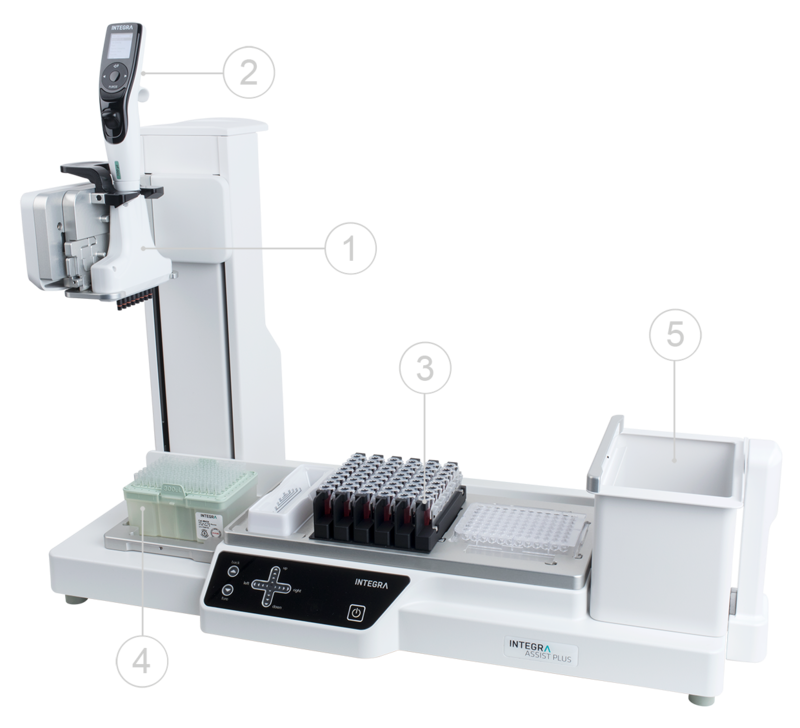

How it works

Simply mount an INTEGRA VIAFLO or VOYAGER electronic pipette onto the ASSIST PLUS pipette holder, choose a pipetting protocol, add a tip rack and your labware. Press RUN and ASSIST PLUS will automatically carry out the

pipetting task.

1) Pipette adapter: accommodates all INTEGRA mulitchannel pipettes – with fixed and adjustable tip spacing.

2) User Interface: program setup and selection is done using the pipette’s intuitive user interface.

3) Deck: three work positions are available to accommodate reagent reservoirs, tube racks and plates.

4) and 5) Automatic tip change: two dedicated postions for automatic tip loading and tip ejection.

Ecellent Results

ASSIST PLUS ensures:

  • Optimal tip immersion depths
  • Consistent pipetting angle
  • Controlled pipetting speeds
  • Precise tip positioning in wells
  • No pipetting mistakes are made
  • Strict adherence to pipetting programs

This leads to superior pipetting results and work flow consistency, while also eliminating human errors such as skipping rows.

Versatility

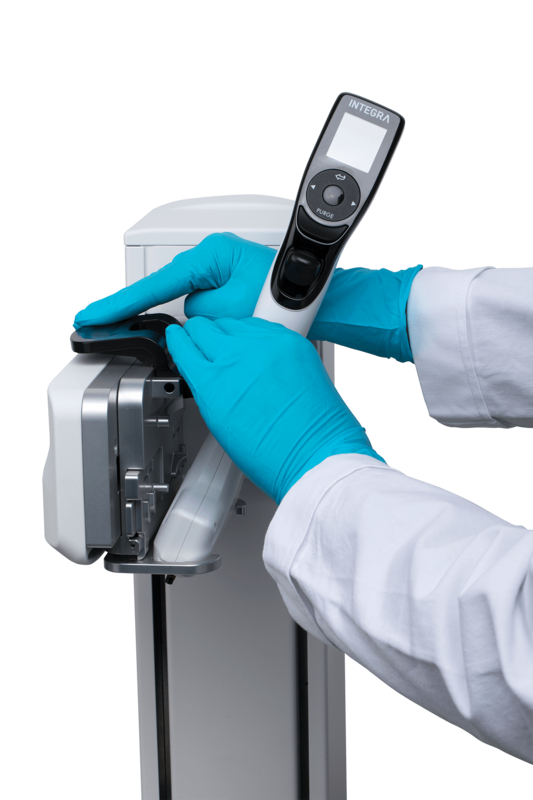

SMART PIPETTE ADAPTER

The pipette adapter of ASSIST PLUS allows the use of all VIAFLO and VOYAGER multichannel pipettes. Pipettes range from 4 to 16 channels and cover a volume range of 0.5 to 1250 μl to allow optimal adaptation to many different applications.

LABWARE COMPATIBILITY

ASSIST PLUS can accommodate numerous labware types, from tubes to 384-well plates in landscape or portrait orientation. INTEGRA multichannel reservoirs, which are available in 10, 25 and 100 ml sizes offer exceptionally low dead volumes. For larger storage volumes, INTEGRA’s automation-friendly reservoirs can be used.

Setting Up Pipetting Tasks

DIRECTLY ON THE PIPETTE

Protocol setup and selection is done using the pipette’s intuitive user interface. The Touch Wheel allows extremely fast menu navigation and volume adjustments.Simply choose a predefined program and adapt the default settings to your requirements.

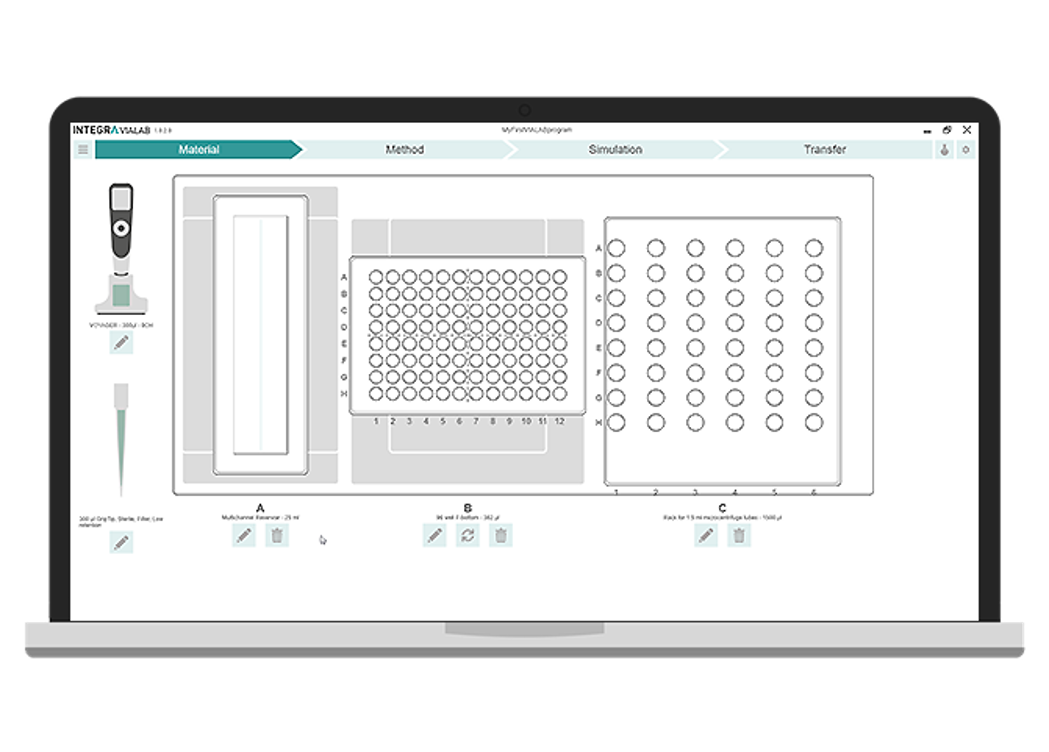

USING A COMPUTER

The VIALAB software offers a simple and intuitive graphical user interface, allowing you to create protocols with a few clicks, without extensive programming knowledge.

VIALINK Pipette Management Software offers advanced users the ultimate freedom of defining pipetting programs step by step.

GripTips

GripTips are always firmly attached and perfectly aligned, regardless of how many side well touch offs are performed. You no longer have to hammer your pipette tips on or worry about pipette tips falling off!

1) LOBES

2) O-RING SEAL

3) RIM SNAPS OVER THE LOBES

4) SHOULDER

The rim (3) of the GripTips will snap over the Multi-Lobes (1), attaching firmly. As a result, GripTips will never accidently fall off.

A shoulder (4) provides a positive stop to prevent over-tightening of the tip. It can only be attached up to that point and no further, ensuring that all tips are at the same height. That means, the tip is either on or off, but nothing in between.

Part No. 4505
Tip loading/ejection Automatic
Pipetting protocol set-up Pipette, VIALINK, VIALAB
Pipetting in even/odd rows and columns
(e.g. access 384-well plates with 8 channels)
Automatic
Available pipettes VIAFLO,  VOYAGER (adjustable tip spacing)
Labware 12 to 384 well plates, Various tubes (see tube racks),
INTEGRA multichannel reservoirs (10, 25 & 100 ml),
INTEGRA automation-friendly reservoirs (150 & 300 ml)

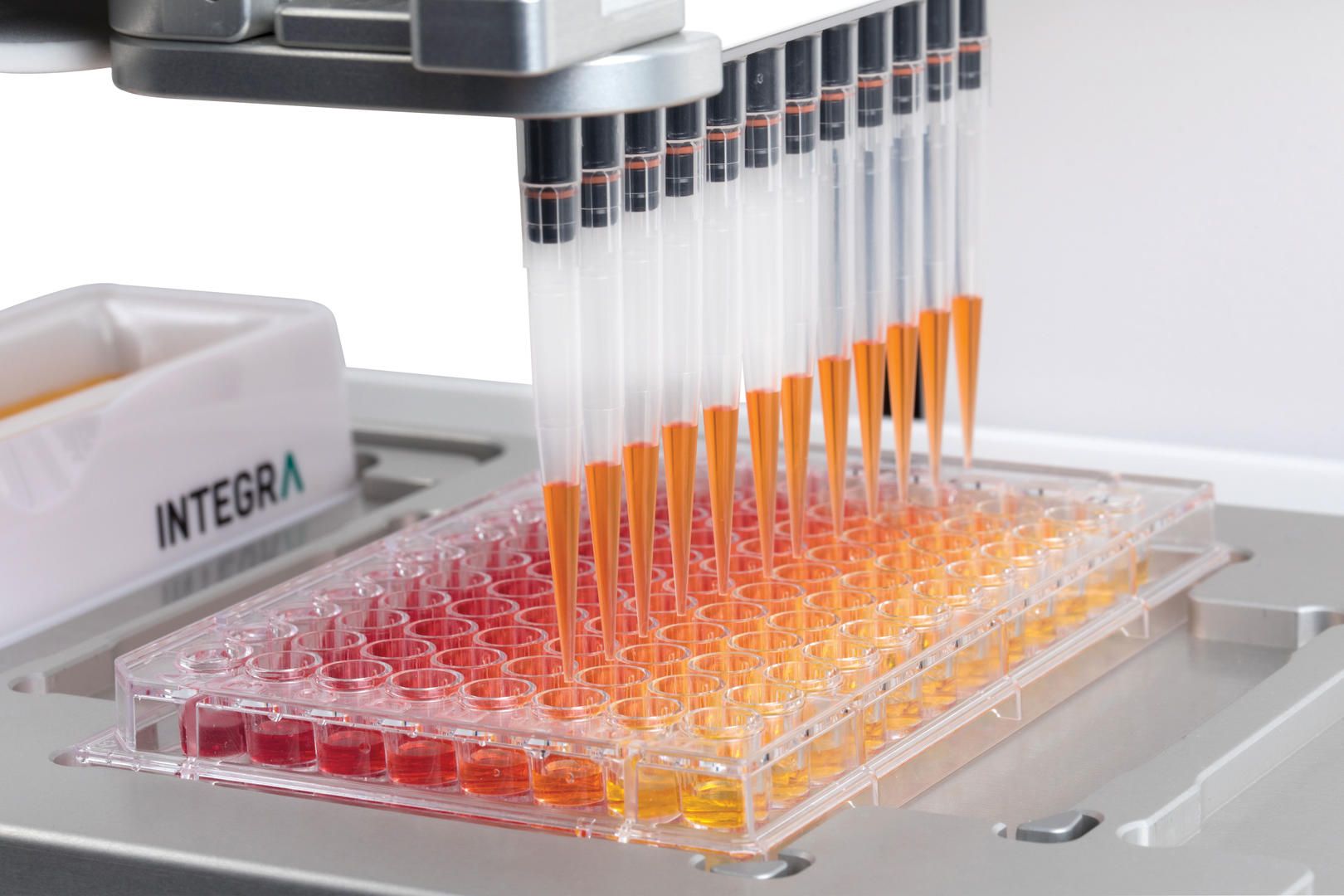

Applications Serial dilution, Plate filling, Reagent addition,

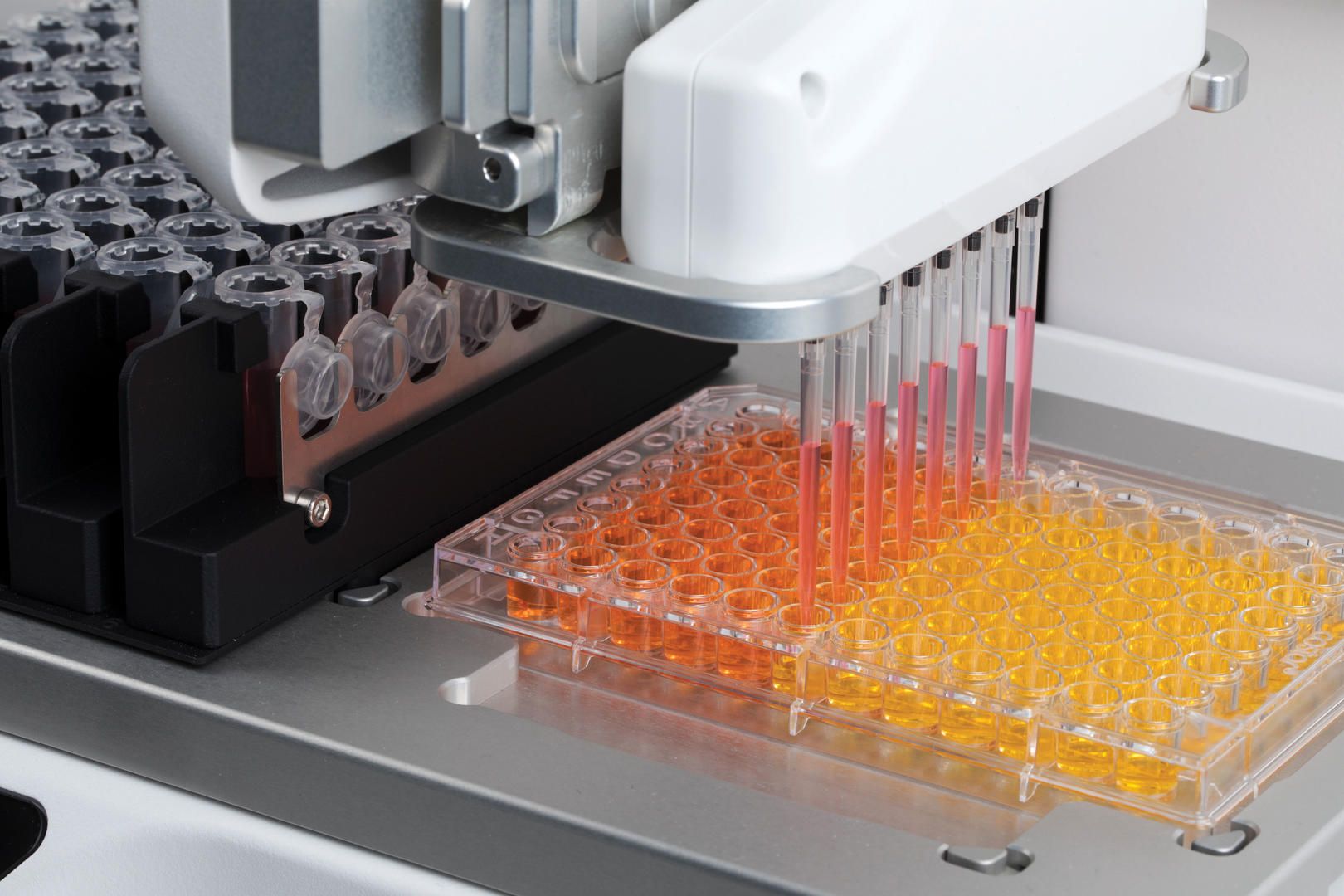

Plate reformatting, Plate duplications, Tube-to-plate transfers
Dimensions (H x D x W) 51x38x75 cm (20″x15″x30″)
Weight (kg)  25 kg
