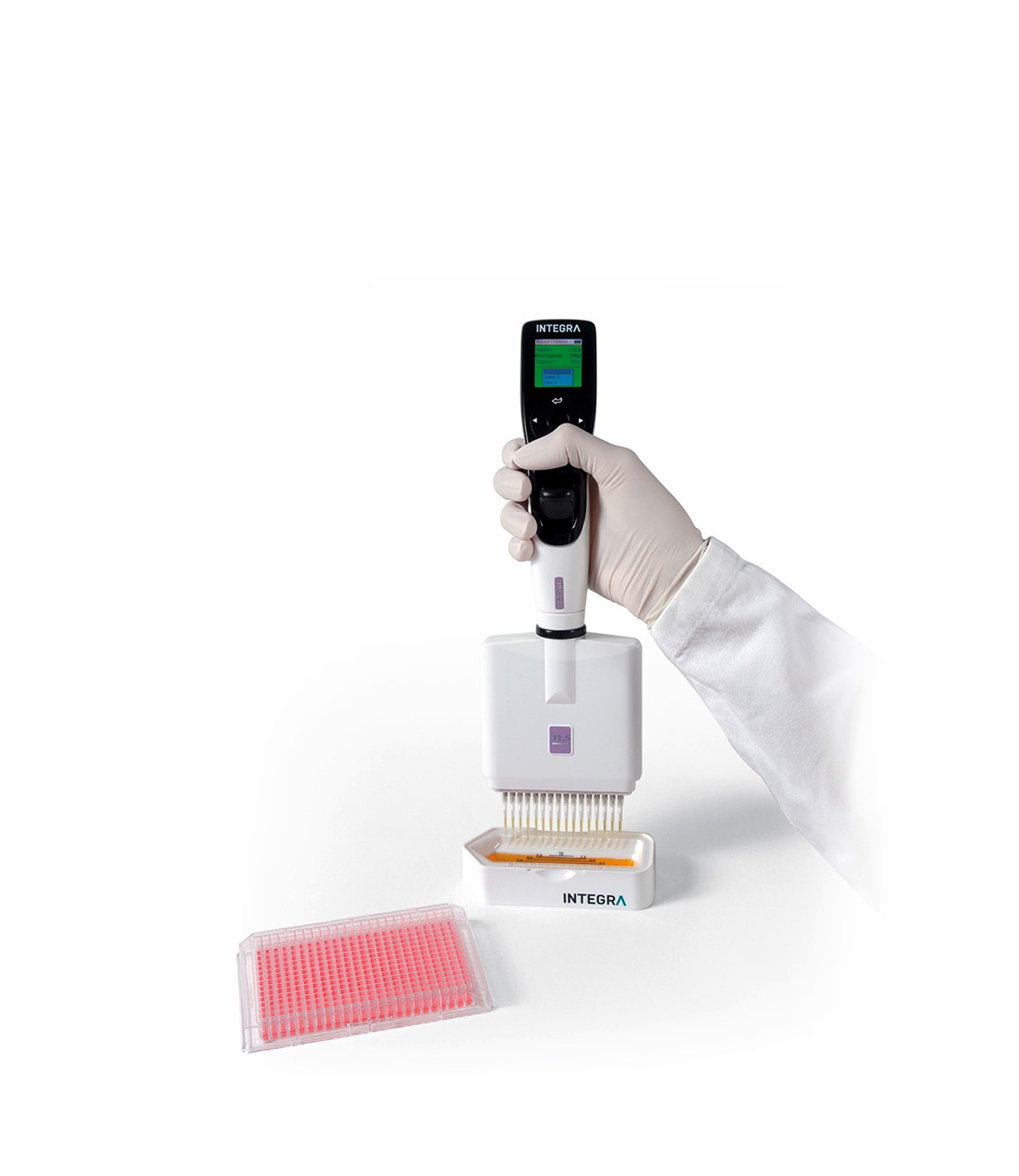

VIAFLO Lightweight Electronic Pipettes

Solving many issues of traditional manual pipetting, VIAFLO II electronic pipettes excel in terms of ergonomics, ease of use and productivity.

Option of 1, 8, 12, and 16 channels, volume range  0.5 to 5000 µl.

GripTip pipette tips that will not fall off

The pipettes and the unique GripTips together form an integral pipetting system. GripTips snap into place with minimal tip loading effort, providing a secure connection.

Easy operation

The color screen together with the intuitive to navigate touch wheel user interface promote overall ease of use.

INTEGRA VIAFLO

תיאור המכשיר

GripTips snap on

griptip_system_viaflo_pipettes_2

Do your pipette tips ever loosen, leak or fall off? This is a common issue in laboratories, caused by the use of universal pipette tips. Such tips require “hammering on” which stretches the shape of the pipette tip rim. The stretched pipette tip rim immediately starts moving back to its original shape, away from the tip cone. This can cause leaking, misaligned tips and even pipette tips that completely fall off the pipette!

This will never happen with any VIAFLO II electronic pipette / GripTip combination. Featuring a low attachment force and a low ejection force, GripTips effortlessly snap onto the tip fittings and are easily ejected. Also, GripTips feature a high lateral resistance once attached to the VIAFLO II pipettes. This means GripTips are always firmly attached and perfectly aligned, regardless of how many side well touch offs are performed. You no longer have to hammer your pipette tips on or worry about pipette tips falling off!

The rim of the GripTips will snap over the
Multi-Lobes, attaching firmly. As a result,
GripTips will never accidently fall off, even
after several touch-offs
.

A shoulder provides a positive stop to prevent over-tightening of the tip. The pipette tip cannot be advanced beyond the positive stop ensuring all tips are at the same height, thus
increasing the precision when touching off. That means, the tip is either on or off, but nothing in between. Hammering the pipette
into the tips to make sure they attach correctly i
s no longer required.

Convenient operation and navigation

viaflo_touchwheel_2

The Touch Wheel is a quick and ergonomic way to modify pipetting parameters. Instead of repeatedly pushing buttons or twisting fingers to modify volumes, you simply slide your finger over the wheel.

The Touch Wheel enables you to browse through menus, change pipetting volumes and speeds or other settings.

Easy to read display

Full Color Screen

On the screen. The entire menu structure is available in English, French, German, Chinese or Japanese.

VIAFLO pipettes feature full text menus, which makes it especially easy to operate the pipette.

Everything you need to know is displayed clearly

pipette_screen_multilingual_2



Immediately productive

VIAFLO electronic pipettes are easier to operate than manual pipettes and let you get started quickly. The VIAFLO pipettes feature 10 preset pipetting programs, for which only a few parameters such as volume and speed need to be defined.

  • Pipet
  • Repeat Dispense
  • Sample Dilute
  • Pipet/Mix
  • Manual Pipet
  • Reverse Pipet
  • Variable Dispense
  • Variable Aspirate
  • Sample Dilute/Mix
  • Serial Dilution

Customized pipetting programs

For more elaborate pipetting protocols, up to 40 user defined custom programs can be created. The custom program is a step-based setup queuing liquid handling steps such as aspirate, dispense, mix and more.

Convenient pipette and program management

vialink_pipette_software

VIAFLO pipettes can also be connected to a computer via the serial communication / charging stand (4211). With the free to use pipette management software VIALINK, custom programs can be created on the computer and then be transferred onto VIAFLO pipettes.

For laboratories with many users or power users with many pipetting protocols, all custom programs can be stored and backed up in a library on the computer.

Channel Part No. Volume Range (µl) Volume
Increments (µl)
Test Volume
(µl)
Accuracy
(±%)
Precision
(≤%)
1 4011 0.5 – 12.5 0.01 1.25 5.00 4.00
6.25 1.50 0.80
12.5 1.00 0.40
4016 2 – 50 0.05 5 3.00 1.50
25 1.50 0.60
50 1.00 0.40
4012 5 – 125 0.1 12.5 3.00 1.00
62.5 1.20 0.40
125 0.60 0.20
4013 10 – 300 0.5 30 2.00 0.60
150 1.00 0.30
300 0.60 0.15
4014 50 – 1250 1 125 3.00 0.60
625 1.00 0.30
1250 0.60 0.17
4015 100 – 5000 5 500 3.00 0.75
2500 1.20 0.30
5000 0.60 0.15
8 4621 0.5 – 12.5 0.01 1.25 10.00 6.00
6.25 4.00 1.60
12.5 2.00 0.80
4626 2 – 50 0.05 5 5.00 2.50
25 2.50 0.60
50 1.50 0.40
4622 5 – 125 0.1 12.5 3.75 1.50
62.5 2.50 0.70
125 1.60 0.35
4623 10 – 300 0.5 30 4.00 1.20
150 2.00 0.60
300 1.60 0.35
4624 50 – 1250 1 125 6.00 1.10
625 2.40 0.50
1250 1.20 0.30
12 4631 0.5 – 12.5 0.01 1.25 10.00 6.00
6.25 4.00 1.60
12.5 2.00 0.80
4636 2 – 50 0.05 5 5.00 2.50
25 2.50 0.60
50 1.50 0.40
4632 5 – 125 0.1 12.5 3.75 1.50
62.5 2.50 0.70
125 1.60 0.35
4633 10 – 300 0.5 30 4.00 1.20
150 2.00 0.60
300 1.60 0.35
4634 50 – 1250 1 125 6.00 1.10
625 2.40 0.50
1250 1.20 0.30
16 4641 0.5 – 12.5 0.01 1.25 10.00 6.00
6.25 4.00 1.60
12.5 2.00 0.80
4646 2 – 50 0.05 5 5.00 2.50
25 2.50 0.60
50 1.50 0.40
4642 5 – 125 0.1 12.5 3.75 1.50
62.5 2.50 0.70
125 1.60 0.35
