Optimised grinding process via torque-optimised frequency converter

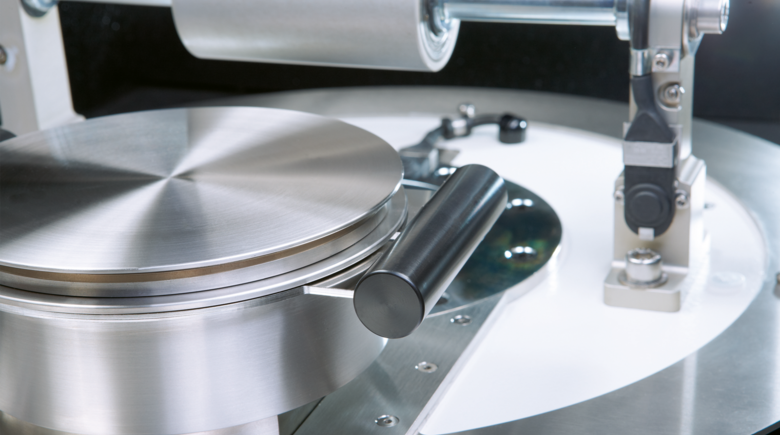

In the Vibrating Cup Mill, the grinding is performed by horizontal circular oscillations of the grinding set on a vibrating plate. The grinding set consisting of ring and puck comminute the grinding sample with extremely high pressure, impact forces and friction. In this form of grinding, the transmission of forces onto the grinding sample is much more important than the pure motor power. For this reason, FRITSCH as the first provider worldwide, developed for the PULVERISETTE 9 a special motor and now equipped it with an especially interference-resistant, torque-optimised frequency converter which fulfils all the relevant safety standards worldwide. It ensures that the motor output is precisely matched to the grinding material and grinding set – which optimises the energy consumption.
- More power with new drive concept
- Extra-fast grinding with up to 1500 rpm
- Precise adjustment of rotational speed, grinding time and pause periods
- Programming and storage of grinding cycles
- Self-explanatory multilingual menu navigation

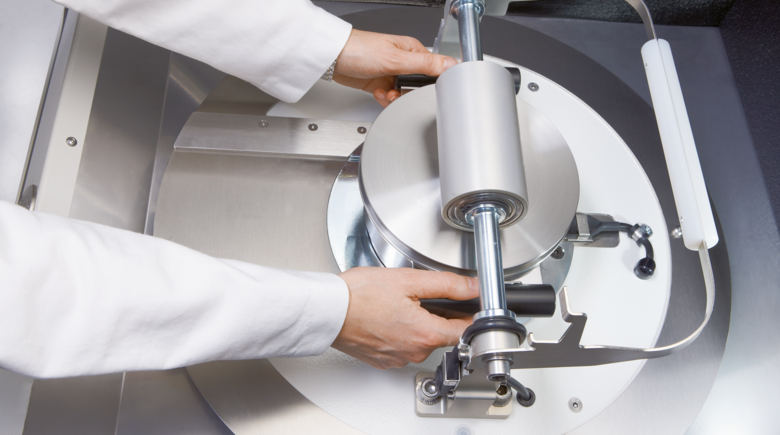

- Optimised tensioning of grinding set with anti-twist tensioning
- Especially safe hood locking
- Complete soundproof lining
- Ergonomically optimized working position – grinding set is placed on a guide rail and easily moved to the final position
- Detector detect agate grinding sets reducing rotational speed
- Especially light grinding sets with heat insulated handles

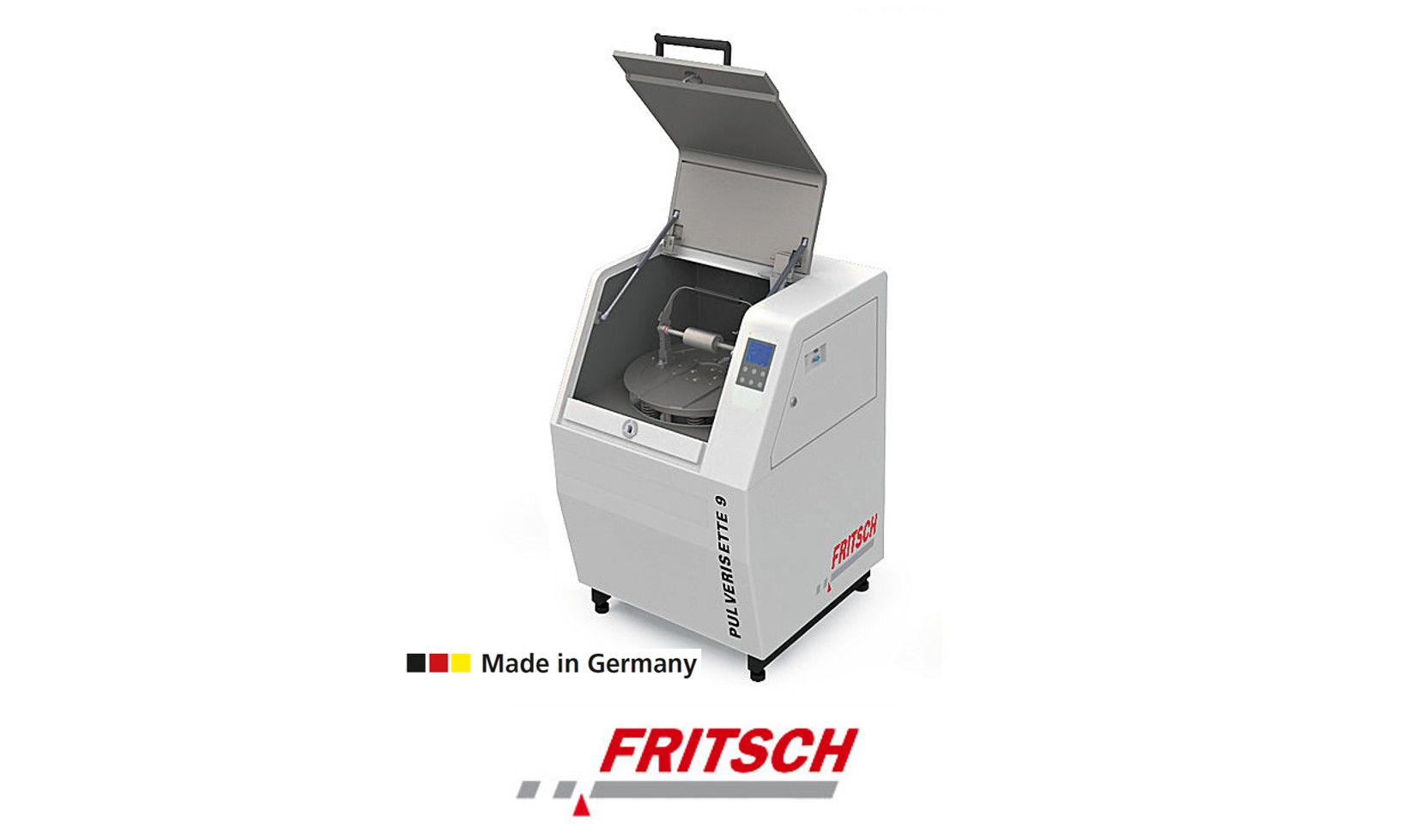

Configure your Vibrating Cup Mill PULVERISETTE 9 exactly to your specific application
Select the appropriate grinding set: Grinding sets in 5 different materials and 3 different sizes from 50 ml to 250 ml volume are available for the FRITSCH PULVERISETTE 9 – for each application the suitable one. The grinding set material must also be harder than the material to be ground though.
FRITSCH also supplies heavy duty wheels with an arresting brake for the PULVERISETTE 9 – making your mill mobile!
Also available is a practical manually-operated hydraulic FRITSCH Pellet Press.
| Working principle | impact |
| Optimal for material type | hard, medium-hard, brittle, fibrous samples and for metal free-grinding |
| Grinding tools | grinding puck with impact rings |
| Materials of the grinding tools | hardened steel, chromium-free tool steel, hardmetal tungsten carbide, agate, zirconium oxide |
| Max. feed size (depending on the material) | 12 mm |
| Min. sample quantity | 10 – 20 ml |
| Max. throughput (depends on material) | 250 ml |
| Final fineness | 10 – 20 µm |
| Feeding | batchwise |
| Motor speed | 600 – 1500 rpm |
| Bearings | ball- and cylindrical roller bearings |
| Electrical Details | 200-240 V/1~, 50-60 Hz, 1470 Watt |
| Instrument also available in the following voltage | 100-120 V/1~, 50-60 Hz, 1470 Watt – order no. 09.5001.00 |
| Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground and grinding set) | Approx. LpAd = 74 dB |
| Weight | 267 kg |
| Dimensions (W x D x H) | floor instrument 77 x 76 x 116 cm |
