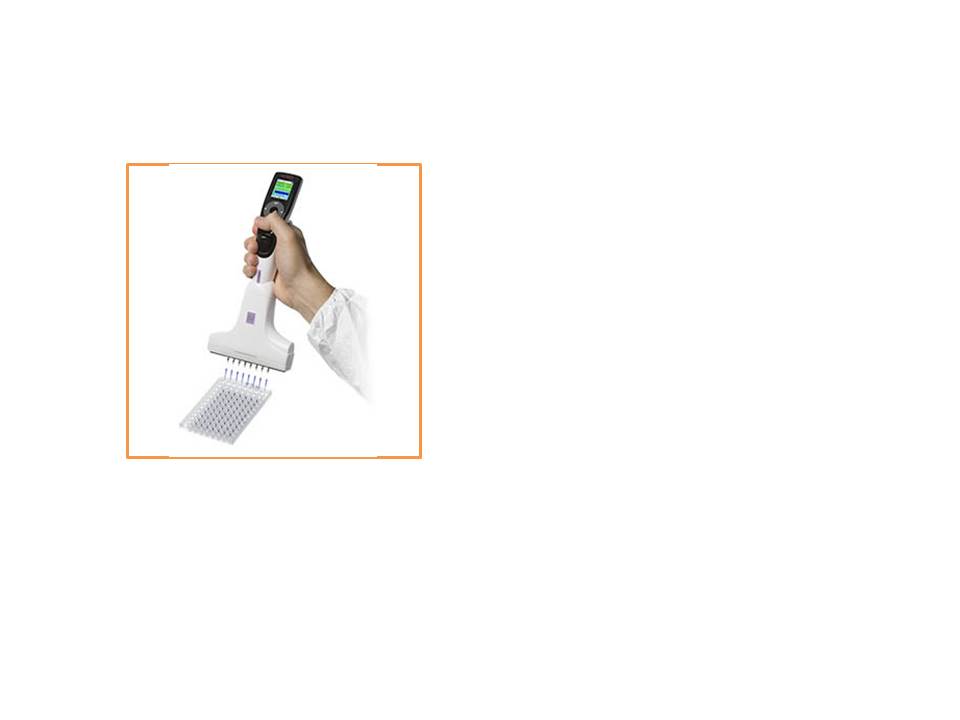

VOYAGER – Electronic Adjustable Spacing Multichannel Pipette

בחר את VOYAGER הפיפטור  החשמלי ורב ערוצי שיאפשר לך ליעל את עבודתך ולקצר משמעותית את זמני העבודה.

חברת INTEGRA השוויצרית, מציגה את קו הפיפטורים הארגונומים בעלי העלות תועלת הגבוהה ביותר. ייחודם הוא שבלחיצת כפתור אחת ניתן לשנות את המרווח שבין הטיפים ,בכך מתאפשרת העברת נוזל אוטומטית בין סוגים שונים של ווילים  (למשל מאפנדורף לבאריות)

קלים  ופשוטים  להפעלה. קיימים במגוון ערוצים :4,6,8, ו-12 ערוצים.

Choose the VOYAGER multichannel Pipette to speed up your sample transfers!

INTEGRA introduces the most cost effective, intuitive, handheld multichannel pipettes for automated fluid transfer between differing labware formats: VOYAGER 4 channel, 6 channel, 8 channel and 12 channel adjustable spacing pipettes.

VOYAGER is the first motorized, handheld adjustable spacing pipette. Featuring a unique one handed tip spacing adjustment, touch wheel user interface, the industry’s first color screen, the lowest pipette tip attachment and ejection forces.

INTEGRA LOGO

תיאור המכשיר

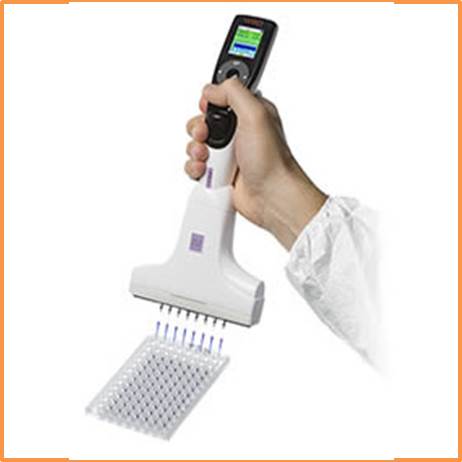

voyager_electronic_pipetteMultichannel Adjustable Tip Spacing

The VOYAGER adjustable tip spacing pipettes expand anywhere from 4.5 mm to 32.5 mm to accommodate a wide variety of micro plates, tube racks and gel boxes. By allowing the user to change the pipette’s spacing with one press of the button, the VOYAGER enables scientists to transfer multiple samples efficiently between labware of different sizes and configurations. The simple push of a button on the touch wheel interface opens or closes the tips to a spacing defined by the user.

voyager_3Motorized Tip Movements

VOYAGER adjustable tip spacing mechanism offers high resolution tip spacing movements for optimal targeting; eliminates transcription errors when performing sample transfers.

voyager_4The motorized tip movement also allows for one hand operation.

voyager_5GripTip Pipette Tips

INTEGRA re-thought, re-designed and re-engineered the connection between pipette and tip.  By designing our GripTips in tandem with VOYAGER pipettes, we have created a unique, fully integrated system that offers a never before seen level of reliability and performance. The combination of INTEGRA’s multi lobe tip fitting and GripTips provide:

  • Tips that don’t fall off help eliminate precious reagent or sample waste.
  • Tips that seal effortlessly to optimize accuracy and precision every time.
  • Low force tip load and ejection to reduce arm and wrist related stresses.
  • All tips seal at the same height ensuring a perfect touch off and increased precision when dispensing.

Intuitive User Interface

VISION_pipettor_1VIAFLO and VOYAGER electronic pipettes have a common user interface making it easy enough to switch between both systems without a second thought. A full color screen and a proven touch wheel interface offer quick and comprehensible menu navigation. Simply by moving a finger over the touch wheel, menus and settings can be accessed. All menus are spelled out on the clear to read screen making memorizing of abbreviations unnecessary.

A set of ten predefined pipetting modes is available, including: Pipet, Repeat Dispense, Sample Dilute, Pipet/Mix, Manual Pipet, Variable Dispense, Variable Aspirate, Sample Dilute/Mix, Reverse Pipet and Serial Dilution. The advantage of the preset programs is that only a few parameters, such as volume, need to be defined before starting. Alternatively, personalized pipetting protocols can be created using the custom program option. Like it plain and simple? All pipet modes that are not used can be hidden from the main menu.

Convenient pipette and program management

VIALINK_pipette_managementVIALINK for convenient pipette and program management
VOYAGER pipettes can be connected to a computer via USB port. With the free to use pipette management software VIALINK, custom programs can be created on the computer and then be transferred onto VOYAGER pipettes. For laboratories with many users or power users with many pipetting protocols, all custom programs can be stored and backed up in a library on the computer.


0.5 – 12.5 µl and 5.0 – 125.0 µl Applications

0.5-12.5 microliter

 Terasaki  Gel Loading  Plate Reformatting

Terasaki

VOYAGER allows users to set the pipette tip spacing anywhere between the outer and inner limits. This allows users to utilize the VOYAGER with unique plate formats such as Terasaki plates

Gel Loading

Easily aspirate 8 or 12 samples from a 9.0mm spacing 96 well PCR plate and dispense to 4.5mm spacing gel lanes.

Plate Reformatting

Transferring samples between 96 and 384 well plates can be tedious and prone to transcription errors. VOYAGER pipettes allow users to transfer 8 or 12 samples easily between 96 and 384 well plates.

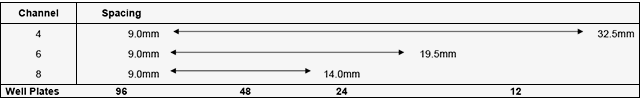

10 – 300 µl and 50 – 1250 µl VOYAGER Tip Spacing Application Guide

10 – 300 µl and 50 – 1250 µl VOYAGER Tip Spacing Application Guide

 Access to Tube Racks  Cell Seeding

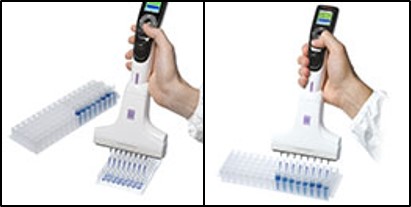

Access to Tube Racks

The VOYAGER adjustable tip spacing

allows the user to easily adapt to tube

racks of different sizes and configurations.

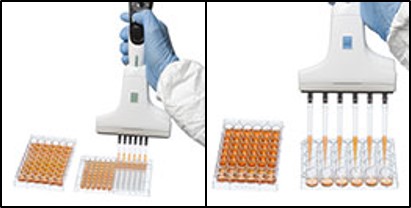

Cell Seeding 4, 6 and 8 channel VOYAGER pipettes allow cell seeding to 12, 24, 48 and 96 well plates. Simply set the center to center well spacing and toggle between two or three different spacings with the touch of the wheel.



Part #

Channels

Volume Range
(µl)

Increments
(µl)

Spacing
(mm)

Test Volume (µl)

Accuracy
(%)

Precision
(%)

4143

4

10 – 300

0.50

9.0 – 32.5

30

5.00

2.00

150

2.75

1.00

300

1.80

0.50

4144

4

50 – 1250

1.00

9.0 – 32.5

125

6.00

1.50

625

3.00

0.75

1250

1.50

0.50

4163

6

10 – 300

0.50

9.0 – 19.5

30

5.00

2.00

150

2.75

1.00

300

1.80

0.50

4164

6

50 – 1250

1.00

9.0 – 19.5

125

6.00

1.50

625

3.00

0.75

1250

1.50

0.50

4121

8

0.5 – 12.5

0.01

4.5 – 14.0

1.25

15.00

10.00

6.25

5.00

3.20

12.5

2.50

1.60

4122

8

5 – 125

0.10

4.5 – 14.0

12.5

6.00

3.50

62.5

3.00

1.00

125

2.00

0.70

4123

8

10 – 300

0.50

9.0 – 14.0

30

5.00

2.00

150

2.75

1.00

300

1.80

0.50

4124

8

50 – 1250

1.00

9.0 – 14.0

125

6.00

1.50

625

3.00

0.75

1250

1.50

0.50

4131

12

0.5 – 12.5

0.01

4.5 – 9.0

1.25

15.00

10.00

6.25

5.00

3.20

12.5

2.50

1.60

4132

12

5 – 125

0.10

4.5 – 9.0

12.5

6.00

3.50

62.5

3.00

1.00

125

2.00

0.70
